How Does a Floating Reamer Holder Work?
How Does a Floating Reamer Holder Work? – Precision machining often demands tight tolerances, and even a fraction of misalignment can lead to poor quality or expensive scrap. One solution to this challenge is the floating reamer holder, a tool that plays a vital role in achieving perfect hole alignment. But how does a floating reamer holder work, and why is it so essential in modern machining?
To understand the functionality and importance of a floating reamer holder, we must first break down what reaming is and how standard tool holders can fall short in certain applications.
What is Reaming and Why Does Accuracy Matter?
Reaming is a finishing process used in metalworking to slightly enlarge and smooth an existing hole. Unlike drilling, which creates the initial hole, reaming is all about refinement. It improves the dimensional accuracy and surface finish of the hole to meet strict tolerances. Typically, reaming is the final operation after boring or drilling.
Now, here’s the catch: reamers are highly sensitive to alignment. Even a slight deviation between the spindle and the pre-drilled hole can cause the reamer to deflect, wear prematurely, or even break. Worse, it could lead to out-of-tolerance holes that compromise the entire assembly.
This is where the floating reamer holder comes in.
Understanding the Basics: What is a Floating Reamer Holder?

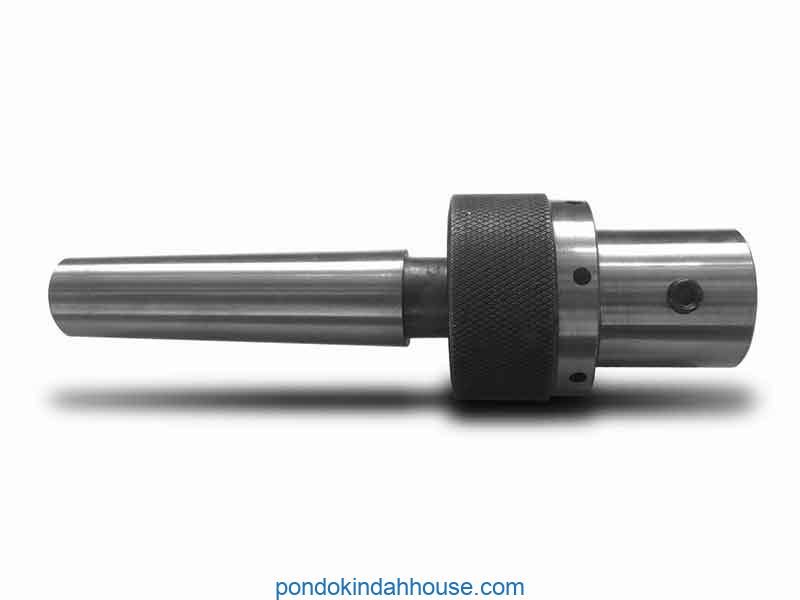

A floating reamer holder is a specialized tool holder designed to allow minimal radial and axial movement of the reamer during operation. This “floating” action compensates for any minor misalignment between the machine spindle and the pre-drilled hole.
It is not rigidly fixed like traditional tool holders. Instead, it has internal mechanisms, usually a combination of springs, ball bearings, and floating sleeves, which give the reamer the ability to self-center. This small freedom of motion ensures that the reamer follows the existing hole path accurately rather than being forced off course by the spindle.
How Does a Floating Reamer Holder Work?
The function of a floating reamer holder relies on its ability to absorb slight misalignments. To understand this more clearly, let’s look at the core working principles:
1. Radial Float
Radial float refers to the sideways movement of the tool. When a reamer enters a slightly misaligned hole, the floating holder allows it to shift side-to-side, aligning perfectly with the center of the hole. This flexibility reduces tool deflection, lowers side loads, and ensures a true and round hole.
2. Axial Float
Axial float provides movement in the longitudinal direction. This is particularly important to absorb any minor variations in hole depth or machine feed inconsistencies. It also prevents the reamer from pushing too aggressively against the bottom of the hole, which could lead to chipping or premature wear.
3. Self-Centering Effect
Due to the floating design, the reamer automatically aligns itself with the path of least resistance—the pre-drilled hole. This self-centering ability is crucial in reducing eccentric wear and maintaining hole concentricity, especially in high-speed production environments.
Design Features of a Floating Reamer Holder
Floating reamer holders come in several designs, but most include the following components:
- Floating Mechanism: Usually built with springs, bushings, or compliant couplings
- Collet or Chuck System: For securely gripping the reamer
- Adjustable Tension Control: Allows operators to fine-tune the amount of float
- Torque Transmission Design: Maintains rotation even while allowing linear movement
These features work in harmony to deliver optimal performance in precision machining tasks.
Benefits of Using a Floating Reamer Holder
Improved Hole Quality
By compensating for minor misalignments, the tool delivers smoother and more accurate holes. The risk of tapered or oversized holes is greatly reduced.
Extended Tool Life
Reduced side forces mean less wear and tear on the reamer. This prolongs tool life and reduces the frequency of replacements.
Fewer Rejected Parts
Higher accuracy leads to consistent output, minimizing the chances of scrapped components due to dimensional errors.
Enhanced Productivity
With fewer interruptions and better hole quality, operators can maintain faster cycle times without sacrificing precision.
Lower Machine Wear
The floating action reduces stress on the machine spindle and other components, extending their service life.
Common Applications for Floating Reamer Holders
Floating reamer holders are especially valuable in industries where high precision is non-negotiable. Some common use cases include:
- Automotive manufacturing (engine blocks, transmission housings)
- Aerospace components (turbine parts, landing gear)
- Medical devices (surgical instruments, implants)
- Hydraulic systems (precision valve holes)
Types of Floating Reamer Holders
There isn’t a one-size-fits-all solution. Several types of floating holders are designed for different machining environments:
Axial-Only Floating Holders
These allow movement in the axial direction only. Best for applications with consistent radial alignment but varying depths or feed rates.
Radial-Only Floating Holders
Ideal when the axial position is controlled by the machine, but radial misalignment needs to be addressed.
Radial and Axial Floating Holders
The most flexible type, allowing full float in both directions. These are preferred in complex or high-precision operations.
Modular Floating Holders
Designed for easy swapping of components, suitable for job shops or multi-purpose CNC machines.
Floating Reamer Holder vs Standard Holder: Key Differences
At first glance, it may seem that a standard tool holder could do the job just fine. However, several differences make floating holders superior for precision reaming:
- Alignment Compensation: Standard holders are rigid, transferring any spindle misalignment directly to the tool
- Tool Life: The floating design reduces lateral loads and vibrations, increasing reamer longevity
- Finish Quality: Floating holders produce superior surface finishes by ensuring concentricity and reducing chatter
- Flexibility: Adjustable floating designs can be tuned for different operations, unlike fixed holders
Installation and Setup Tips
Using a floating reamer holder correctly is just as important as choosing the right one. Here are some setup recommendations:
- Ensure that the pre-drilled hole is within reasonable tolerances
- Align the machine spindle as closely as possible to reduce the need for excessive float
- Adjust the float tension based on material hardness and hole size
- Use appropriate cutting speeds and feed rates for reaming operations
- Monitor tool wear and replace the reamer when necessary to avoid damage to the holder
Maintenance and Care
Like all precision tools, floating reamer holders require regular maintenance to stay effective:
- Clean the internal components to remove metal chips and coolant residue
- Inspect the springs or bushings for signs of fatigue
- Lubricate moving parts if recommended by the manufacturer
- Check for wear in the chuck or collet system
Challenges and Limitations
While floating reamer holders are incredibly useful, they’re not without drawbacks:
- Cost: Generally more expensive than standard holders
- Complexity: Requires more careful setup and calibration
- Size Constraints: Some models may not fit in all machines or may limit tool length
- Not Ideal for All Materials: Very soft or abrasive materials may cause unpredictable float behavior
Future Trends in Floating Reamer Holder Technology
As manufacturing continues to evolve, so does toolholder technology. Some innovations on the horizon include:
- Digital Toolholders: Integrating sensors to monitor float, torque, and tool condition in real-time
- Smart Adjustment Systems: Automatically adapting float based on hole position and alignment feedback
- Lighter Materials: Using carbon composites or titanium alloys to reduce tool weight and improve balance
Conclusion: The Hidden Hero of Precision Machining
So, how does a floating reamer holder work? In essence, it bridges the gap between the ideal and the real. While no machine setup is ever 100% perfect, floating holders give tools the flexibility they need to align, adjust, and perform flawlessly.
Whether you’re operating a high-speed CNC line or handling complex aerospace components, the floating reamer holder ensures that your final product meets exacting standards without costly errors. It is a small component, often overlooked, but with a massive impact on the quality and efficiency of your machining operations.
